Impact Wrench Off, Torque Wrench On: The Two Halves of a Wheel Change

A wheel change has two halves that ask for two different tools, and most of the arguments about impact wrenches come from treating them as one. The first half is loosening: five nuts that were tightened to a figure, then baked on by a year of heat, salt and rust. The second half is tightening: the same five nuts set to a figure the vehicle maker wrote down, in an order that seats the wheel flat. An impact wrench is built for the first half and is the wrong instrument for the second, and the reason is in what the number on its box means.

What breakaway torque measures

The torque printed on an impact wrench is the most it can deliver in the loosening direction, for the fraction of a second that the anvil hammers a stuck fastener. The Bluebow impact wrench comes in two tiers on this site, 900 and 960 ft-lbs, and both figures are breakaway figures. They say how stubborn a nut the tool will move. They do not say how tight the tool will leave a nut when you run it the other way, because an impact wrench has no way of measuring that. It hammers until you let go of the trigger, and the result depends on the battery charge, the speed setting, how long you held it and how the socket sat on the nut.

That is fine for loosening. A nut that lets go at 300 ft-lbs and a nut that lets go at 600 both end up in your hand. It is not fine for tightening, where the difference between 100 and 150 ft-lbs is the difference between a wheel that works loose on its studs and a stud that has been stretched past its yield point. The tool that measures the second half is the torque wrench, and the tire trade writes it into its own procedure.

What the manuals ask for

The figures below are a selection from the 1995 to 2021 lug nut torque chart compiled by James Halderman, an automotive textbook author, for cars, light trucks, SUVs and vans. The chart is long and the owner's manual of your own vehicle is the figure that counts, but the selection shows two things at once: how narrow the range is, and how far below any impact wrench it sits.

The manual for your own vehicle and year is the figure to use.

Every passenger figure in the chart sits between 45 and 150 ft-lbs. The smallest car on the list, the Chevrolet Metro, asks for 45, and the half-ton pickups ask for 130 to 150. Put those against 900 ft-lbs of breakaway torque and the point makes itself: the impact wrench is six to twenty times stronger than anything the wheel needs on the way back on. Trailer wheels run higher. The Load Trail wheel torque sheet lists 140 to 170 ft-lbs for a 16 inch trailer wheel on 9/16 inch studs and 450 to 500 ft-lbs for the M22 hub-pilot nuts of a 17.5 inch heavy hub, tightened in three stages and re-torqued after 50 miles. Those are the fasteners where the 960 tier earns its place on the loosening side, after a winter of road salt.

The four steps the tire trade teaches

The Tire Industry Association teaches wheel installation as four letters, R.I.S.T., and Modern Tire Dealer spelled them out in an editorial we read while writing the torque guide. Remove debris from the wheel's mating surfaces, the hub face and the back of the wheel, because rust and dirt between them let the wheel settle after the nuts are tight. Inspect every component, studs, nuts and the wheel itself. Snug the lug nuts in a star pattern, starting at 12 o'clock and crossing the center of the wheel each time, never around in a circle. Torque to the value the vehicle manufacturer specifies with a wrench that can be calibrated.

1. Remove: wire-brush the hub face and the back of the wheel until the metal is bare where they meet.
2. Inspect: look at each stud thread, each nut seat and the wheel's bolt holes before anything goes back on.
3. Snug: run the nuts on by hand, then with the impact wrench at low speed, in a star pattern, until each nut seats. Stop there.
4. Torque: set the torque wrench to the manual's figure and go round the star pattern once more until it clicks on every nut.

The impact wrench belongs to the S. Snugging in a star pattern at the lowest speed setting pulls the wheel flat onto the hub without leaving any one nut carrying the load. The T belongs to the torque wrench, and it is the only step that puts a number on the job. A wheel left at impact torque is a wheel tightened to whatever the tool happened to deliver, which is not a figure anyone wrote down and not a figure you can repeat next time.

Why not just stop early with the impact

Some people try to use the impact wrench as a torque wrench by feel, counting the hammer blows or stopping at a speed setting. It does not work, and the reason is worth understanding. The tool's output varies with battery charge, with how warm the motor is, with how the socket sits on the nut and with how long the trigger stays down after the nut seats. Two nuts on the same wheel, done the same way, can end up fifty ft-lbs apart. A torque wrench removes every one of those variables: it clicks at the figure and nowhere else.

The other failure runs the opposite way. An impact wrench that keeps hammering after the nut is seated stretches the stud. A stretched stud does not look different, and it holds for a while, and that is what makes it dangerous: it breaks later, on the road, usually taking a second stud with it when the wheel starts to work. The fix for a stretched stud is a new stud pressed into the hub, which is a far bigger job than the ten seconds the torque wrench would have cost.

Where the Bluebow tiers fit

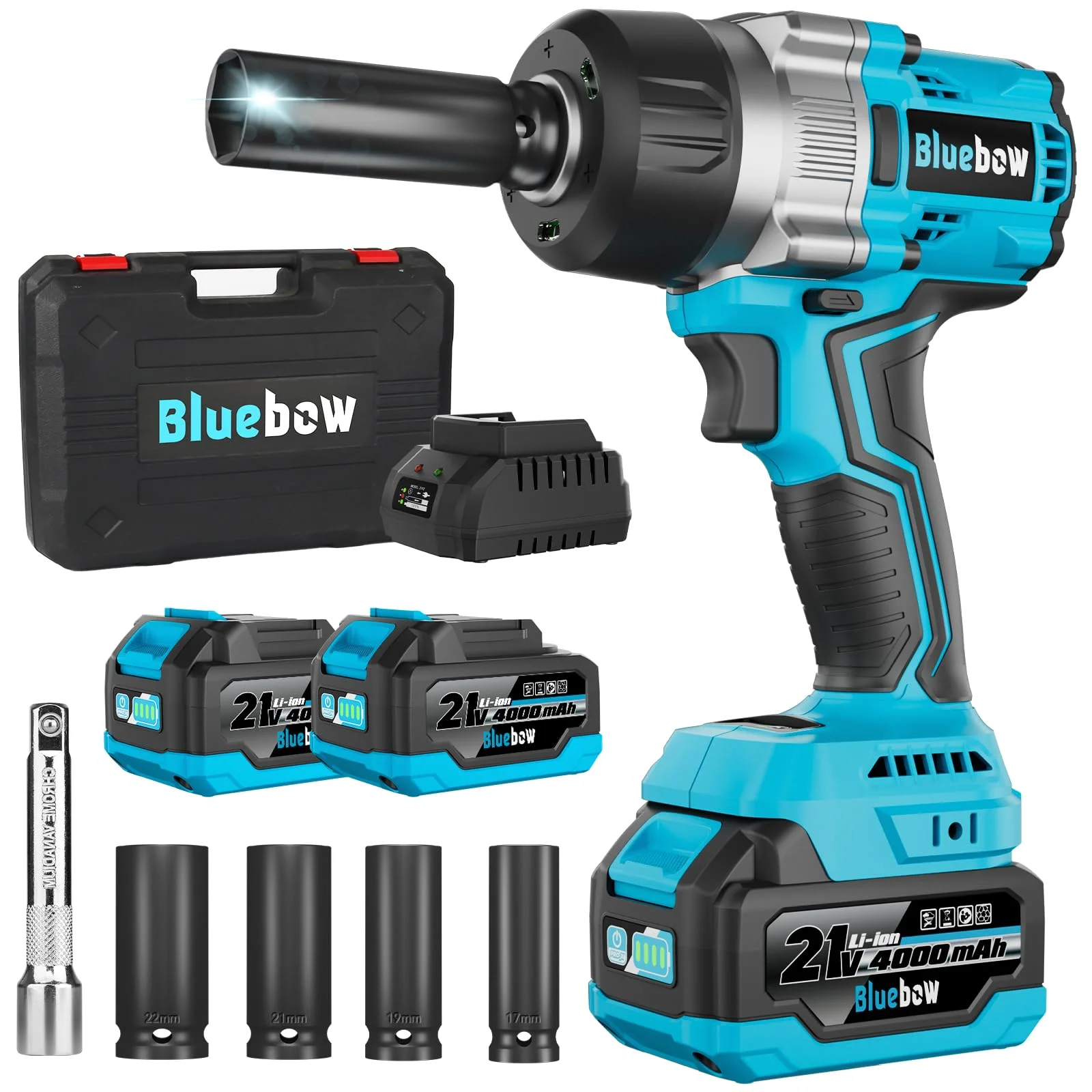

For a car, a crossover or a half-ton pickup, either tier breaks any lug nut loose, and the choice comes down to what else lives in your driveway. The 900 ft-lbs tier runs its brushless motor to 2,300 rpm across three speeds and does everything a passenger vehicle asks, on the suspension as well as the wheels. The 960 ft-lbs tier runs to 2,400 rpm and is the one for trailers, farm equipment and old iron, where bolts seize over a winter and the extra torque saves the breaker bar and the torch. Both come with two 21 V 4.0 Ah batteries, a charger, an LED under the anvil and four impact sockets in 17, 19, 21 and 22 mm, which cover most passenger car and light truck lug nuts.

Use the impact sockets that come in the case or others rated for impact use. A chrome hand socket from a ratchet set can crack under the hammering, and the pieces go wherever the socket was pointing. That is also the reason OSHA's eye and face protection rule asks for eye protection with side shields wherever particles can fly, fitted over prescription glasses without moving them. A pair that lives in the case with the wrench is the easiest way to make sure it is on.

Hands and hours

An impact wrench is a vibrating tool, and NIOSH's bulletin on vibration syndrome names grinders, drills and high-speed rotating hand tools among the causes. The condition is numbness, pain and blanching of the fingers, and it comes from years of exposure rather than from one afternoon, but the work practices are easy to keep from the start. Grip the tool as lightly as safe control allows and let it do the work. Rest it on the fastener instead of holding its weight. Keep your hands warm and dry. Take a ten-minute break after each hour of continuous use. A wheel change is minutes, not hours, but a Saturday of rotating tires on three vehicles adds up.

Around the wheel itself, the trim and splash shields that come off with it are the job of the nut driver set, not the impact wrench: a quarter-inch hex driver in a cordless screwdriver takes a plastic shield off without stripping its clips. And when the wheel is back on and torqued, the last habit the tire trade recommends is a re-check after the first fifty miles. The Load Trail sheet asks for it on trailer wheels in so many words, and it costs nothing on a car.

What to take from this

Loosen with the impact wrench. Snug with it at low speed in a star pattern. Finish with a torque wrench at the figure in your manual, and re-check after fifty miles. The impact wrench makes the first half fast, and the torque wrench makes the second half right. Both tools belong in the same box, and the Bluebow garage set is built around that pairing.
